Sounds accompanying the article

"String/frets contacts in the electric bass sound:
Simulations and experiments"

by Clara Issanchou, Jean-Loïc Le Carrou, Cyril Touzé, Benoît Fabre and Olivier Doaré

Applied Acoustics, vol. 129, pp. 217-228, 2018.

Comparison experimental/numerical results

• Case A: Maximal initial displacement: 0.87 mm. Plucking at x = 0.64 m from the nut. The observed variable is the displacement at 9 mm from the bridge.

Experimental signal:



Numerical signal:



• Case B: Maximal initial displacement: 3.6 mm. Plucking at x = 0.64 m from the nut.
Except when specified, contact parameters are $\alpha \; =\; 1.5$ and $K\; =\; 1013$.

Experimental signal:



Numerical signal:





Numerical signal without dispersion:



Numerical signal with dispersion and $K\; =\; 109$:




• Case C: Maximal initial displacement: 7.8 mm. Plucking at x = 0.64 m from the nut.

Experimental signal:



Numerical signal:





• Two polarisations:


Experimental signals (along (Oz) and (Oy) resp.):




Numerical signals (along (Oz) and (Oy) resp.):





Influence of the plucking point

Maximal initial displacement: 3.6 mm. Plucking at x = 0.64 m from the nut.

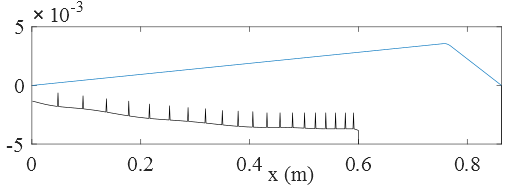

Plucking at 10 cm from the bridge:

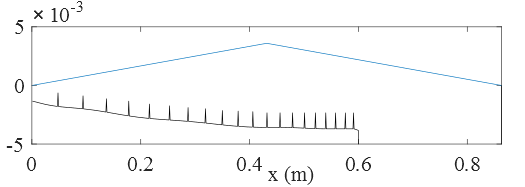

Plucking at the middle of the string:

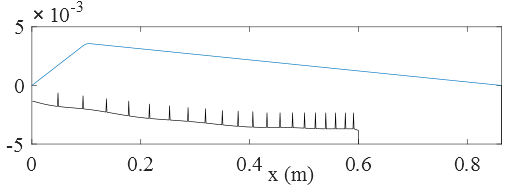

Plucking at 10 cm from the nut:





Tuning test

Maximal initial displacement: 1.8 mm. Plucking at x = 0.6 m from the nut.

Measured fretboard:

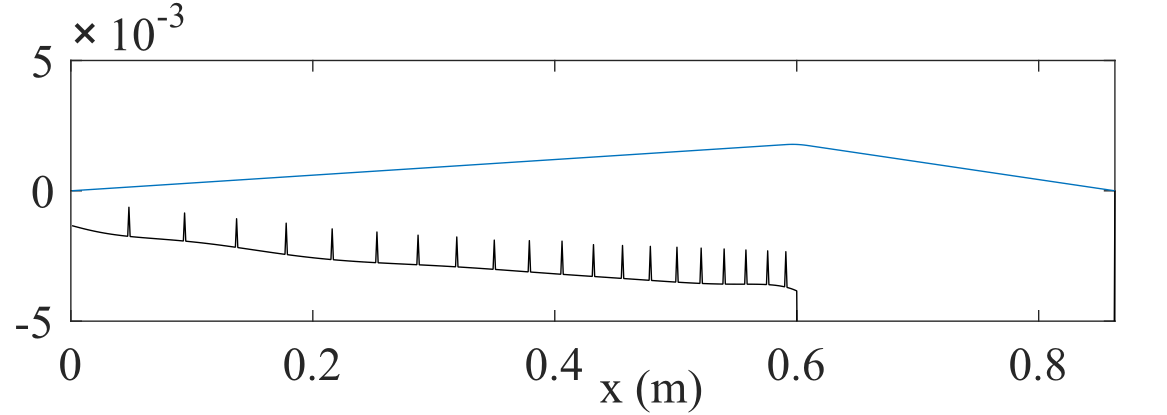

Medium curvature:

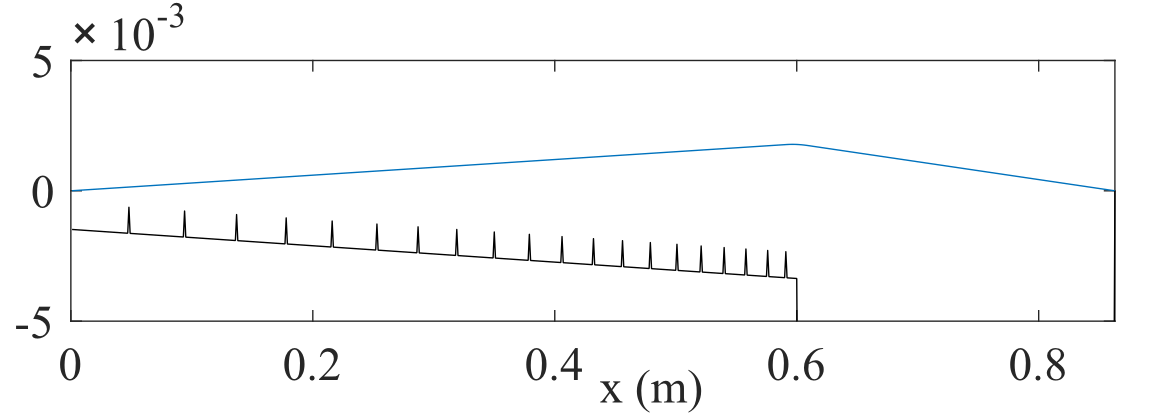

Straight fretboard:

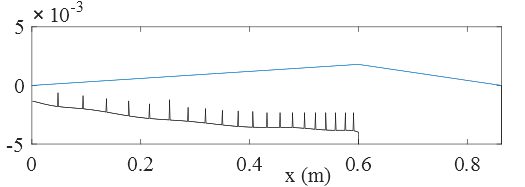

Raised 6th fret:
